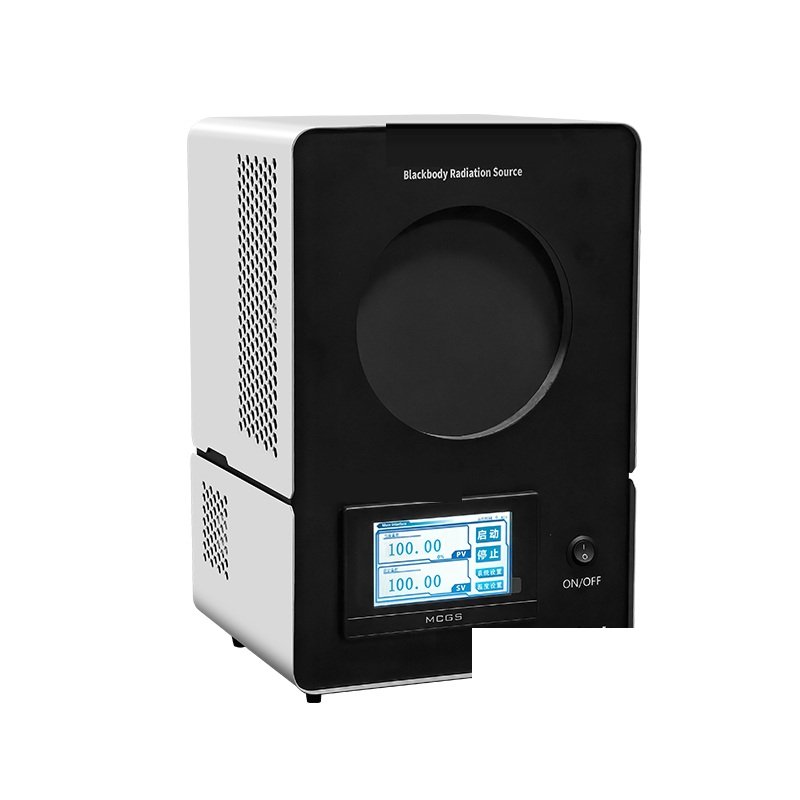

Non-point Source Blackbody Furnace(-20℃-100℃)

Product Introduction

The blackbody calibration source is a standard for infrared radiation. It is widely used in the technical index test of the process test and the qualification test during the development of the infrared detector. It can complete the response uniformity, response curve and death of the photosensitive surface of the infrared focal plane device. In the test of parameters such as element pixels. At the same time, the area source blackbody radiation source is the core equipment of the infrared imaging prism collimation device, and it cooperates with the infrared collimation optical system and infrared target to complete the key technical index test and performance evaluation of the infrared imaging system. It can meet the testing requirements of infrared imagers in my country's newly developed infrared imaging guided weapons, and can meet the testing requirements of infrared thermal imaging cameras that are widely used in medical, construction, security monitoring, environmental testing and other industries.

Product Feature

• More portable and lighter. Higher precision.
• Human-machine interface, Chinese display, touch operation, beautiful and elegant.
• One-key temperature setting, simple operation. Rapid heating and temperature control.
• According to customer requirements, the language interface of multiple countries and regions can be copied for easy export.

Technical Indicators

Model

Temperature Range

-20℃~100℃

Control Mode

Touch Screen

Temperature Resolution

0.1℃/0.01

℃

Temperature Control

PID Automatic Control

Radiating Surface

φ150mm

Emissivity

≥0.95

Temperature Stability

Not greater than 0.15℃ and 0.15%T(bigger one in two)

T is the radiation source temperature(Within 10min)

Temperature Uniformity

±(0.2~0.6)

℃

(2/3 center area)

Power Supply

220V AC 50/60Hz

Wire Line Diameter

≥1.5㎡

Power

800W

Dimension(L×W×H)

240mm×215mm×370mm

Weight

8.0Kg

Environment

22℃±3

℃

;15%-65%RH;

Optional Features

①Support 232 communication

②Adjustable emissivity(Adjustable between 0.95~0.99)

Note: other special requirements can be customized according to the needs of users
