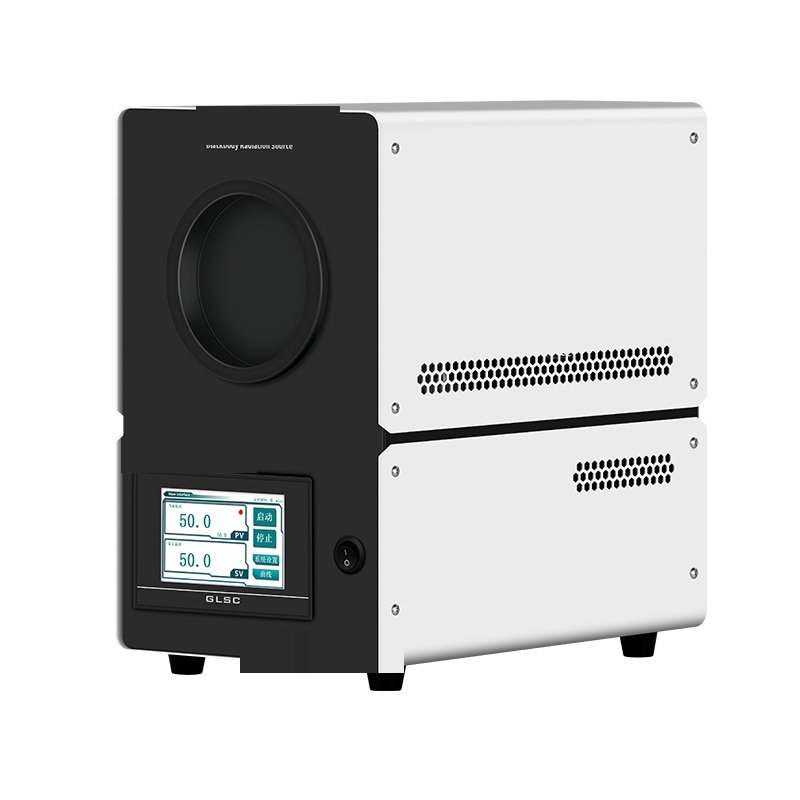

Non-point Source Blackbody Furnace,Radiating Surface100mm(50-350℃)

Product Introduction

In the calibration and verification of radiation thermometers, the comparative method is usually adopted, that is, through the radiation source of high stability (usually black body radiation source) and other supporting equipment, the temperature reproduced by the standard apparatus and the temperature reproduced by the radiation thermometer are compared, in order to judge whether it is qualified or to give the calibration results.

As a standard radiation source, the standard black body is mainly used to calibrate radiation thermometers, infrared thermometers and radiation temperature sensing detectors.

At present, our company has advanced black body technology, full product range and wide temperature range of black body series products.

Product Feature

• Novel appearance design, integrated structure of furnace body and temperature control instrument.
• Heat insulation between the heating body and the shell, special software is used for pressure limiting heating, no high-power power transformer is required.
• Automatic temperature control is adopted, which is safe and reliable with fast temperature rise and good temperature stability.
• Easy to operate, small in size and light in weight, easy to carry, suitable not only for laboratory calibration, but also for on-site calibration.

Technical Indicators

Model

Temperature Range

50℃~350℃

Control Mode

Touch Screen

Temperature Resolution

0.1℃/0.01

Temperature Control

PID Automatic Control

Radiating Surface

100*100mm(Customizable)

Emissivity

≥0.95

Temperature Stability

Not greater than 0.15℃ and 0.15%T(bigger one in two)

T is the radiation source temperature(Within 10min)

Temperature Uniformity

Not greater than ±0.2℃ and 0.2%T(bigger one in two)

T is the radiation source temperature(In 2/3 of the central zone)

Power Supply

220V AC  50/60Hz

Current

10A

Wire Line Diameter

≥1.5㎡

Power

800W

Dimension(L×W×H)

325mm×200mm×340mm

Weight

8Kg

Environment

22℃±3

℃

;15%-65%RH;

High 2000m

Optional Features

①Support 232 communication

②Adjustable emissivity(Adjustable between 0.95~0.99)

Note: other special requirements can be customized according to the needs of users
