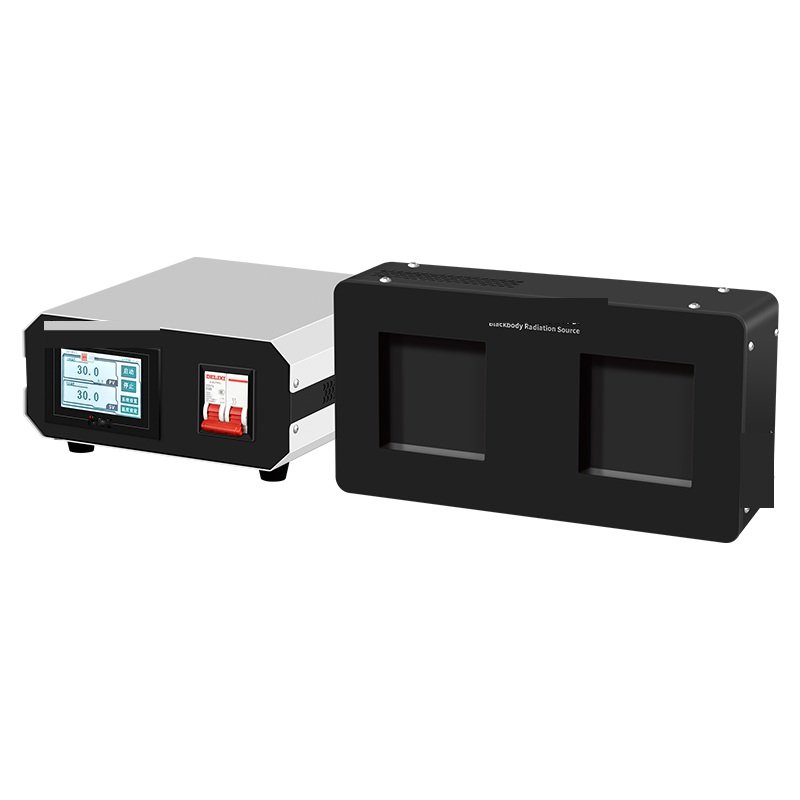

portable double-sided blackbody radiation source (① side: 10℃-40℃ ② side: room temperature +5℃-80℃)

Product Introduction

The surface source blackbody radiation source is the infrared radiation working standard. It is widely used in the technical index test of process test and identification test in the development process of infrared detectors. It can complete the test of parameters such as the uniformity of the photosensitive surface response, response curve and dead pixel of the infrared focal plane device. At the same time, the surface source blackbody radiation source is the core equipment of the infrared imaging prism device. It cooperates with the infrared collimation optical system and infrared target to complete the key technical index test and performance evaluation of the infrared imaging system. It can meet the test needs of infrared imagers in my country's newly developed infrared imaging guided weapons, and can meet the test needs of infrared thermal imagers widely used in medical, construction, security monitoring, environmental testing and other industries.

Product Feature

• More portable and lighter. Higher precision.
• Human-machine interface, English display, touch operation, beautiful and elegant.
• One-key temperature setting, simple operation. Rapid heating and temperature control.
• According to customer requirements, the language interface of multiple countries and regions can be copied for easy export.

Technical Indicators

Product Name

Portable double-sided blackbody radiation source

Model

Operating temperature

① side: 10℃-30℃ ② side: room temperature +5℃-80℃

Operation mode

Touch screen operation

R

esolution

0.1

℃

/0.01

℃

Temperature control

PID automatic control

Radiation surface

80mm

×

80mm

Cavity emissivity

≥

0.95 (emissivity adjustable between 0.96-1)

S

tability

Not greater than the larger of 0.15

℃

and 0.15%t, t is the radiation source temperature (within 10min))

U

niformity

Not greater than the larger of 0.2

℃

and 0.2%t, t is the radiation source temperature (within 2/3 center area)

Power supply

220V

AC

50HZ

10A

Wire diameter

≥

1.5 square

Volume

Host:300mm

×

90mm

×

150mm

Weight

Host:3.0

Kg

(excluding temperature controller)

Environment

15-22

℃

; 15%-50%RH; up to 2000 meters

Optional functions

1.

RS232 communication or RS485 communication

2.

Programmable

3.

Emissivity (between 0.95-1) adjustable

Language

The default is Chinese or English, and the language interface can be obtained anywhere in the world according to customer requirements.

Intellectual property rights

The blackbody radiation source touch screen system has obtained the computer software copyright registration certificate, patent number: 2020SR0565743

Certification qualification documents

ISO9001 quality management system certification
