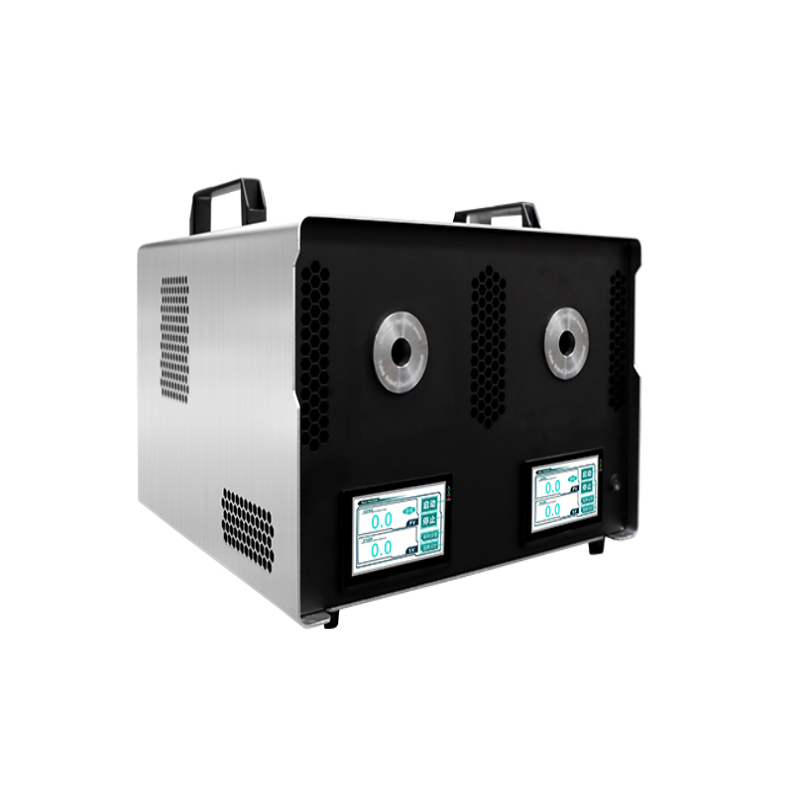

high and low temperature integrated cavity blackbody furnace (-20℃-500℃)

Product Introduction

Blackbody in industry is mainly used in the field of temperature measurement, the main product is blackbody furnace. Calibration and verification of radiation thermometers, usually using the comparative method, that is, through the high stability of the radiation source (usually a blackbody radiation source) and other supporting equipment, the temperature reproduced by the standard and the temperature reproduced by the radiation thermometer being examined, in order to determine whether it is qualified or to give the calibration results.

The standard blackbody as a standard radiation source is mainly used to calibrate radiation thermometers, infrared thermometers and radiation temperature sensing detectors. Our company now has advanced blackbody technology, a full range of products, a wide temperature range of blackbody series products. The products are small in size, light in weight and easy to carry, which are not only suitable for calibration of radiation thermometers in the laboratories of all levels of measuring organizations, but also can be used for on-site calibration.

Product Feature

• (1) Novel design of appearance, using the furnace body and temperature control instrument split structure.
• (2) Heat generator and shell insulation, using special software to limit the pressure heating, do not need high-power power transformer.
• (3)Adopting automatic heating and temperature control mode, safe and reliable, fast heating speed, good temperature stability.
• (4) easy to use and operate small size and light weight, easy to carry, not only suitable for laboratory calibration, can also be used for field calibration work.
• (5) isothermal black body cavity, only a cavity, the cavity radiation with the spectral distribution of uniformity, the cavity emissivity of 0.995 or more, the resolution of 0.1.
• (6) Screen built-in multi-point independent temperature correction function.
• (7) Automatic intelligent adjustment: built-in MH logic intelligent adjustment function, as well as advanced control algorithms for parameter self-tuning function.
• (8) program control function, the device is reserved for 10 groups of different program settings interface, one-key operation, convenient and quick, to meet the user's requirements for a variety of testing points, improve the user's testing efficiency.
• (9) Communication interface can be customized RS232.
• (10) The device has a memory function, reboot quickly return to the previous settings, no need to set up a separate start.

Technical Indicators

Product Model

Temperature range

-20℃-500℃

[ A chamber: -20℃~80℃(can be customized) B chamber: 50℃~500℃ ]

Temperature Resolution

0.1℃/0.01℃

Temperature control method

PID automatic control

Operation method

Touch screen operation

Precision

±0.3%t+1℃

Temperature stability

Not greater than 0.1 ℃ and 0.1% t of the greater, t for the radiation source temperature (10min)

Temperature uniformity

Not greater than the greater of ± 0.15 ℃ and 0.15% t, t is the radiation source temperature

Cavity diameter

50mm (low temperature), 50mm (medium temperature) (customizable)

Cavity depth

140mm (low temperature cavity depth), 190mm (medium temperature cavity depth)

Cavity mouth emissivity

≥0.995

Power supply

220V 50HZ (optional 110V 60HZ)

Refrigeration mode

Semiconductor refrigeration

Dimension

L 510mm×W 550mm×H 400mm

Weight

30KG

Power

≤1800W

Power socket equipped with

10A National standard, British standard, American standard, European standard available

Wire diameter

≥2.5 square

Working Temperature

0℃~25℃ 20%RH~80%RH

Accessories

1 power cord, manual, three packages, 2 dust caps, 1 nitrogen pressure reducing valve (for low temperature), 1 hose
