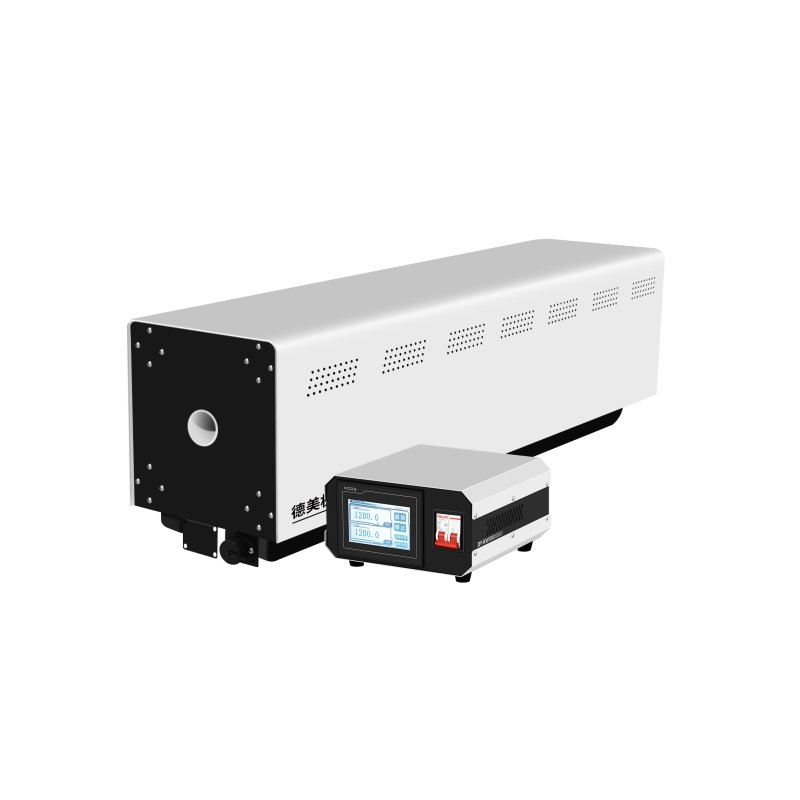

Thermocouple Annealing Furnace

Product Introduction

precious metal thermocouple annealing furnace is a special annealing furnace used for annealing precious metal thermocouple before verification of precious metal thermocouple.

The general operating temperature is 300 ~ 1200℃.

DY – THL01 thermocouple annealing furnace is a professional temperature measurement department and metallurgy, machinery, chemical industry, electric power, scientific research and other departments, to carry out the thermocouple calibration indispensable equipment.

precious metal thermocouple annealing furnace has the characteristics of fast heating speed, good heat preservation performance, uniform temperature field, convenient maintenance and so on.

Its various performance indexes are in line with the requirements of national metrological verification regulations.

Technical Indicators

Temperature range

300 ~ 1200℃

The furnace length

1000 mm

Uniform temperature field

< ±20℃ at 1100℃

Uniform temperature field

> 40 mm

Power supply

50Hz 220V±10%

Heating current

≤10A

Dimensions

1010×250×300 (length × width × height) (mm)
