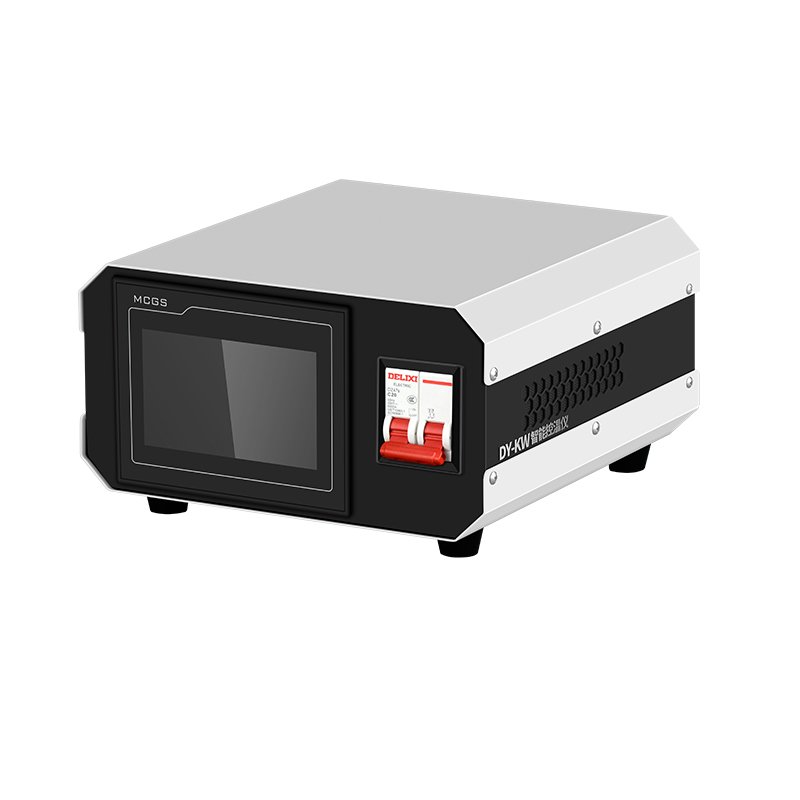

Intelligent Temperature Controller
intelligent temperature controller is suitable for all kinds of oil tank, water tank, thermocouple verification furnace, thermocouple annealing furnace, thermos
- Enquiry-based quotation
- Technical & calibration support
- Worldwide enquiries welcome
Description
Product Introduction
intelligent temperature controller is suitable for all kinds of oil tank, water tank, thermocouple verification furnace, thermocouple annealing furnace, thermostat and other laboratory temperature equipment temperature control, digital display.
With circuit break, short circuit protection, PID control mode.
Technical Indicators
Temperature range, upper and lower limits can be set manually according to the sensor.
Temperature control accuracy
≤0.2℃/10min
Resolution
1℃
Default display
full color LED display in Chinese
Operation mode
touch screen operation
Language
Default Chinese (local language in any region of the world can be taken according to customer requirements).
Weight
1.5 Kg
Size
300mm×250mm×100mm
Specifications
| Temperature range, upper and lower limits can be set manually according to the sensor. | |
|---|---|
| Temperature control accuracy | ≤0.2℃/10min |
| Resolution | 1℃ |
| Default display | full color LED display in Chinese |
| Operation mode | touch screen operation |
| Language | Default Chinese (local language in any region of the world can be taken according to customer requirements). |
| Weight | 1.5 Kg |
| Size | 300mm×250mm×100mm |
