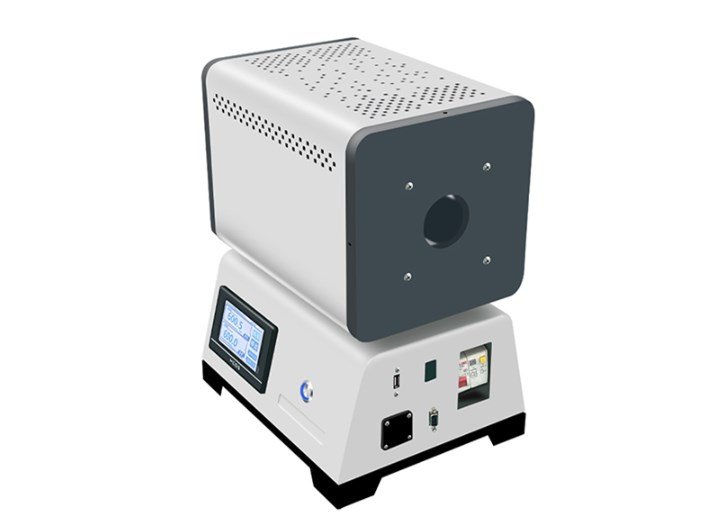

Thermocouple Calibration Furnace
short low-cost metal thermocouple calibration furnace (300C-1200°C) is suitable for the calibration of short thermocouples below 1200 degrees. The thermocouple
- Enquiry-based quotation
- Technical & calibration support
- Worldwide enquiries welcome
Description
Product Introduction
short low-cost metal thermocouple calibration furnace (300C-1200°C) is suitable for the calibration of short thermocouples below 1200 degrees. The thermocouple calibration furnace has the characteristics of good thermal insulation performance, fast heating, and beautiful appearance. Used in conjunction with other calibration equipment, it can form a complete thermocouple calibration system. Among them, the short cheap metal thermocouple calibration furnace (300C-1200℃) has the characteristics of stable temperature control and superior oxidation resistance.
thermocouple calibration furnace is an electric heating equipment that provides heat source for thermocouples. It is mainly composed of furnace heating element, insulation layer shell and other parts. The calibration furnace is divided into vertical furnace and horizontal furnace according to its appearance. Shape furnace long furnace.
This calibration furnace is used to provide horizontal tubular thermocouple calibration furnaces with and without temperature controllers and temperature fields within the range of (300°C-1200C). It is used to calibrate thermocouple thermal resistance, which is divided into precious metal thermocouple calibration furnace, cheap metal thermocouple calibration furnace and short thermocouple calibration furnace.
Technical Indicators
Model
Temperature Range
300-1200℃
Heat source
Electric heating
Uniform temperature field
Within 30mm of the effective working area, the absolute value of the temperature difference between any two points is not more than 0.5 °C; the radial radius is not less than 14mm, the absolute value of the temperature difference between any two points of the same section is not more than 0.25 °C
Length
300mm
Hole Diameter
40mm*300mm
Size
330×270×425mm
Power
2200w
Power Supply
220V 50HZ
17025 Calibration Certificate
Model
Temperature Range
300-1200℃
Temperature Resolution
0.1℃
Heat source
Electric heating
Uniform temperature field
Within 30mm of the effective working area, the absolute value of the temperature difference between any two points is not more than 0.5 °C; the radial radius is not less than 14mm, the absolute value of the temperature difference between any two points of the same section is not more than 0.25 °C
Length
300mm
Working Chamber Size
Dia 40mm*300mm
Size
330×270×425mm
Power
2200w
Power Supply
220V 50HZ
Specifications
| Model | |
|---|---|
| Temperature Range | 300-1200℃ |
| Heat source | Electric heating |
| Uniform temperature field | Within 30mm of the effective working area, the absolute value of the temperature difference between any two points is not more than 0.5 °C; the radial radius is not less than 14mm, the absolute value of the temperature difference between any two points of the same section is not more than 0.25 °C |
| Length | 300mm |
| Hole Diameter | 40mm*300mm |
| Size | 330×270×425mm |
| Power | 2200w |
| Power Supply | 220V 50HZ |
| Model | |
|---|---|
| Temperature Range | 300-1200℃ |
| Temperature Resolution | 0.1℃ |
| Heat source | Electric heating |
| Uniform temperature field | Within 30mm of the effective working area, the absolute value of the temperature difference between any two points is not more than 0.5 °C; the radial radius is not less than 14mm, the absolute value of the temperature difference between any two points of the same section is not more than 0.25 °C |
| Length | 300mm |
| Working Chamber Size | Dia 40mm*300mm |
| Size | 330×270×425mm |
| Power | 2200w |
| Power Supply | 220V 50HZ |
