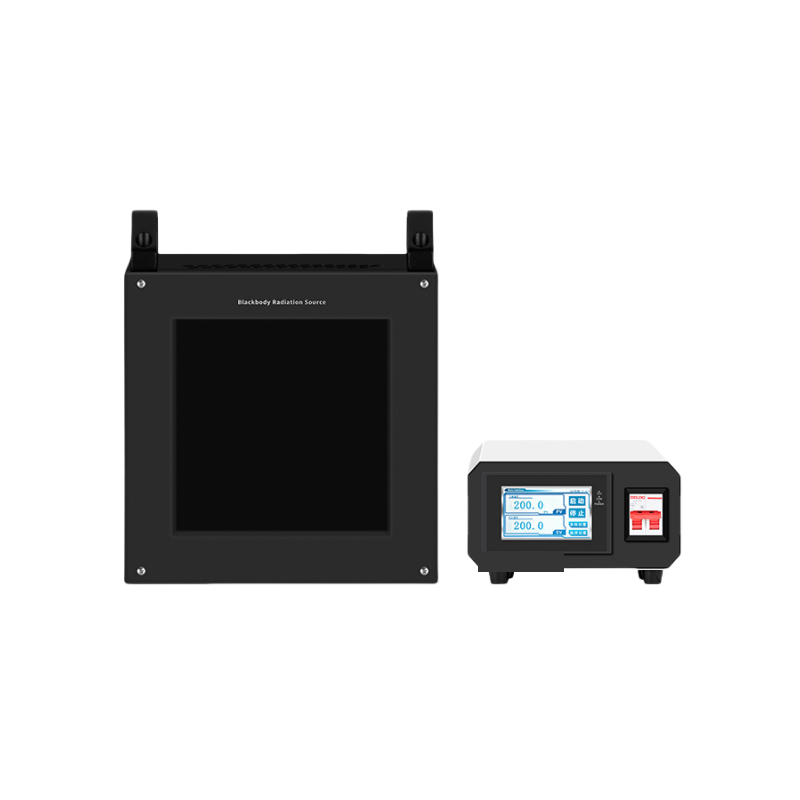

Split Type Surface Source Blackbody Furnace/Blackbody Infrared Calibrator
The surface source blackbody radiation source/blackbody calibration furnace/blackbody infrared calibrator is the working standard for infrared radiation. It is
- Enquiry-based quotation
- Technical & calibration support
- Worldwide enquiries welcome
Description
Product Introductiondry
The surface source blackbody radiation source/blackbody calibration furnace/blackbody infrared calibrator is the working standard for infrared radiation. It is widely used in the process testing and qualification testing of technical indicators in the development process of infrared detectors. It can achieve the uniformity of the photosensitive surface response of the infrared focal plane device. At the same time, the surface source blackbody radiation source, as the core equipment of the infrared imaging collimation device, cooperates with the infrared collimation optical system and infrared targets to complete the testing and performance evaluation of key technical indicators such as the infrared imaging system. It can meet the testing needs of infrared imagers in infrared imaging guided weapons developed in our country, and can meet the testing needs of infrared thermal imaging cameras widely used in medical, construction, security monitoring, environmental detection and other industries.
Product Feature
- More portable and lighter. Higher accuracy.
- Human-machine interface, Chinese display, touch operation, beautiful and elegant.
- One-click setting of temperature, easy to operate. Rapid heating and temperature control.
- According to customer requirements, the language interfaces of multiple countries and regions can be copied to facilitate export.
- Temperature setting, simple operation.Rapid heating, temperature control.
Technical Indicators
Model
Temperature Range
RT+5℃ ~ 500℃ (RT= 22℃±3℃)
Operating Method
Touch Screen
Control Mode
PID Automatic Control
Temperature Resolution
0.1℃
Radiating Surface Area
Φ200mm
Emissivity
≥0.95℃
Temperature Stability
Not greater than 0.15℃ and 0.15%t(bigger one in two,t is the raidiation source temperature
Temperature Uniformity
±(0.2~1.0)℃ (@RT +5℃,2/3 center area)
Adjusting Mode
Automatically adjust power
Power Supply
220VAC 50HZ
Power
500W
Communication
RS232,customizable
Weight
15Kg
Specifications
| Model | |
|---|---|
| Temperature Range | RT+5℃ ~ 500℃ (RT= 22℃±3℃) |
| Operating Method | Touch Screen |
| Control Mode | PID Automatic Control |
| Temperature Resolution | 0.1℃ |
| Radiating Surface Area | Φ200mm |
| Emissivity | ≥0.95℃ |
| Temperature Stability | Not greater than 0.15℃ and 0.15%t(bigger one in two,t is the raidiation source temperature |
| Temperature Uniformity | ±(0.2~1.0)℃ (@RT +5℃,2/3 center area) |
| Adjusting Mode | Automatically adjust power |
| Power Supply | 220VAC 50HZ |
| Power | 500W |
| Communication | RS232,customizable |
| Weight | 15Kg |
