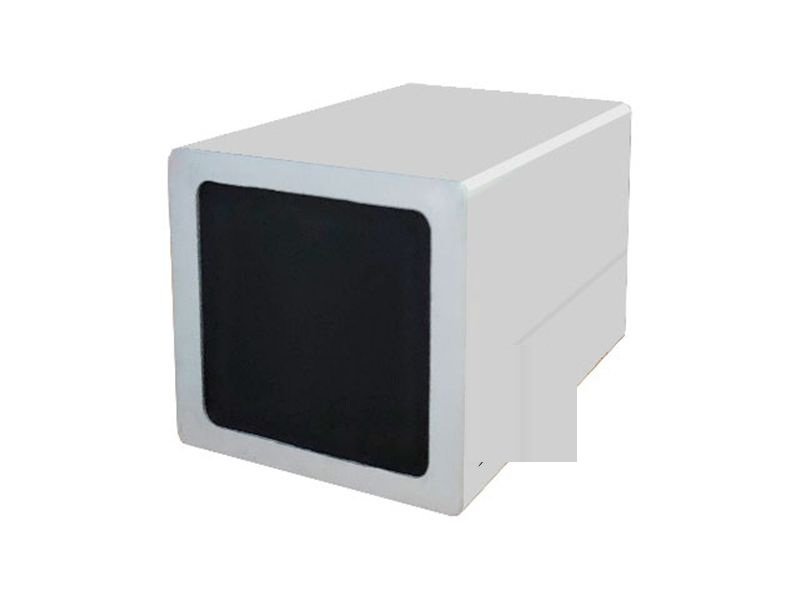

Embedded Blackbody Furnace(35℃~45℃)
1, More portable, more light.More precision.
- Enquiry-based quotation
- Technical & calibration support
- Worldwide enquiries welcome
Description
Product Introduction
1, More portable, more light.More precision.
2, The equipment can be built into the equipment, so as to facilitate the use of special industries.
3, Temperature setting, simple operation.Rapid heating, temperature control.
Technical Indicators
Temperature Range: 35℃~45℃ adjustable
Operating Temperature :(35℃, 37℃, 40℃) optional, automatic operation
Radiation Surface: 70mm×60mm
Temperature Resolution: 0.1℃
Temperature Stability: ± (01.-0.2) ℃
Temperature Uniformity: ±0.2℃
Emissivity: 0.97±0.02
Factory Emissivity Setting: 0.97
Power Supply: 220V AC 50Hz
Dimensions/weight: 135mmX90mmX90mm/≤1.0kg
Ambient temperature/humidity: 0℃~30℃ / ≤80%RH
Optional: optional RS485 communication interface
Completely meet the positioning temperature requirements, easy to carry, suitable for robot built-in black body, suitable for built-in brake temperature measurement. It can be used in car with 12V power supply.
