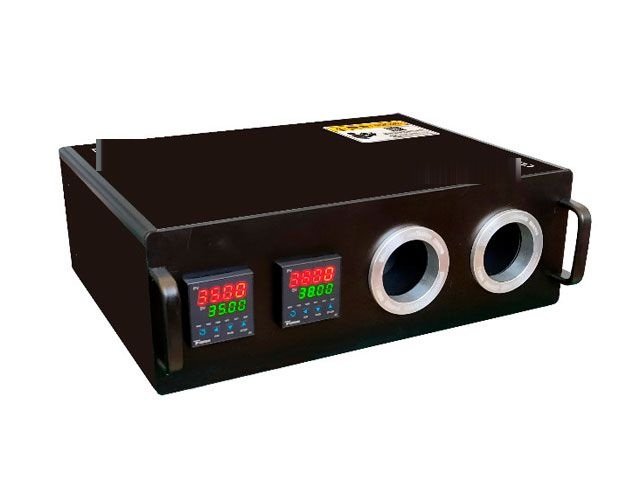

Portable Double-cavity Frontal Blackbody Furnace(35℃~45℃)

Product Introduction

Portable infrared body temperature gun for the black body furnace is the company's independent research and development and production of the main red outer ear temperature gun, infrared forehead temperature gun calibration, can also be used for the calibration of infrared body surface screening instrument.

Portable infrared temperature gun black body furnace, through the company since the main research and development of the temperature cycle system, plus the company's research and development of new materials supporting use, the emissivity can reach 0.99 above, is the calibration of the red outer ear temperature gun and forehead temperature gun the best ideal product.

Product Feature

• 1The two cavities control different temperature points respectively, the radiation of the cavity is evenly distributed with the spectrum, and the emissivity of the cavity is above 0.99, which can increase the output of the large temperature gun.
• 2The two black body cavities can be modified separately by the TRT national transmission source to achieve more accurate measurement, which well solves the drawbacks of instrument operation.
• 3For the manufacturers with more temperature points to be measured, they can choose one cavity and two temperature measurements, such as :(35℃, 36℃) and another cavity (37℃, 38℃) or choose the adjacent temperature point as the test point, so as to ensure the accuracy of the test. For enterprises with large output, they can choose one cavity to measure the temperature and purchase multiple sets of equipment to meet the requirements of more efficient production.
• 4Automatic temperature control, safe and reliable, fast heating speed, good temperature stability.
• 5Easy to operate, small size and light weight, easy to carry, not only suitable for laboratory calibration, but also for on-site calibration.
• 6The use of double row digital display measurement and set value parameter Settings and other new technology, high precision, high function, and strong anti-interference ability.

Technical Indicators

Model

(Double cavity structure)

Temperature Range

35℃~45℃ (Changeable)

Temperature Resolution

0.01℃

Diameter of Cavity

Φ50mm(The two cavities are the same)

Depth of Cavity

50mm(The two cavities are the same)

Emissivity

≥0.99

Temperature Stability

±(0.1~0.2)℃/10min

Temperature Uniformity

±0.15℃

Power

220V 50HZ 100W

Weight

2.5KG

Size

360mm×300mm×130mm(L×W×H)

Note: other special requirements can be customized according to user needs
