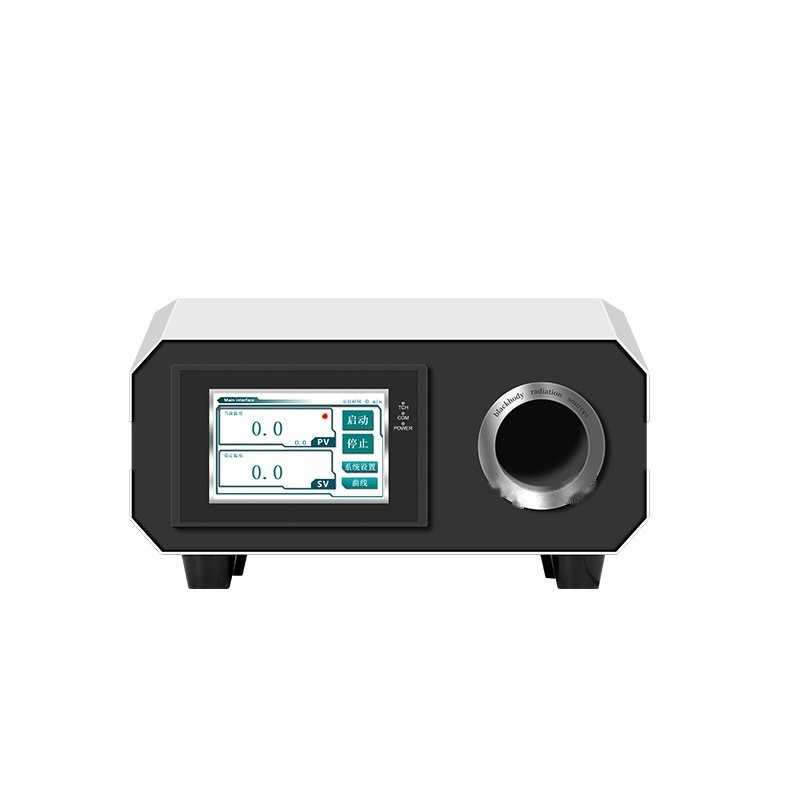

Portable Blackbody Furnace for Temperature Gun(30℃~50℃)

Product Introduction

The portable infrared body temperature blackbody furnace uses a temperature circulation system developed by our company and new materials developed by our company. Its emissivity can reach above 0.99, making it an ideal product for calibrating infrared ear and forehead temperatures.

Product Feature

• Novel appearance design, touch screen operation, simple operation.
• Isothermal black body cavity, only one cavity mouth, cavity mouth radiation evenly distributed along with the spectrum, cavity mouth emissivity above 0.99.
• Adopt automatic temperature control, safe and reliable, fast temperature rise and good temperature stability.
• Easy to operate, small in size and light in weight, easy to carry, suitable not only for laboratory calibration, but also for on-site calibration.
• New technologies, such as double-row digital display of measured values and parameter setting of set values, are featured by high precision, multi-function and strong anti-interference ability.

Technical Indicators

Model

Chamber style

Short cavity plane type

Deep cavity cone type

Temperature Range

30℃~45℃ (Customizable)

30℃~45℃ (Customizable)

Control Mode

Touch Screen

Touch Screen

Temperature Resolution

0.1℃

0.01℃

Cavity Diameter

φ

50mm

φ

50mm

Deep cavity

50mm

180mm

Emissivity

≥0.99

≥0.998

Temperature Stability

±0.2℃/10min

±0.15℃/10min

Temperature Uniformity

±0.2℃

±0.15℃

Power Supply

220V  AC 50HZ 100W

220V  AC 50HZ 100W

Weight

4.0Kg

4.0Kg

Dimension(L×W×H)

225mm×225mm×115mm
