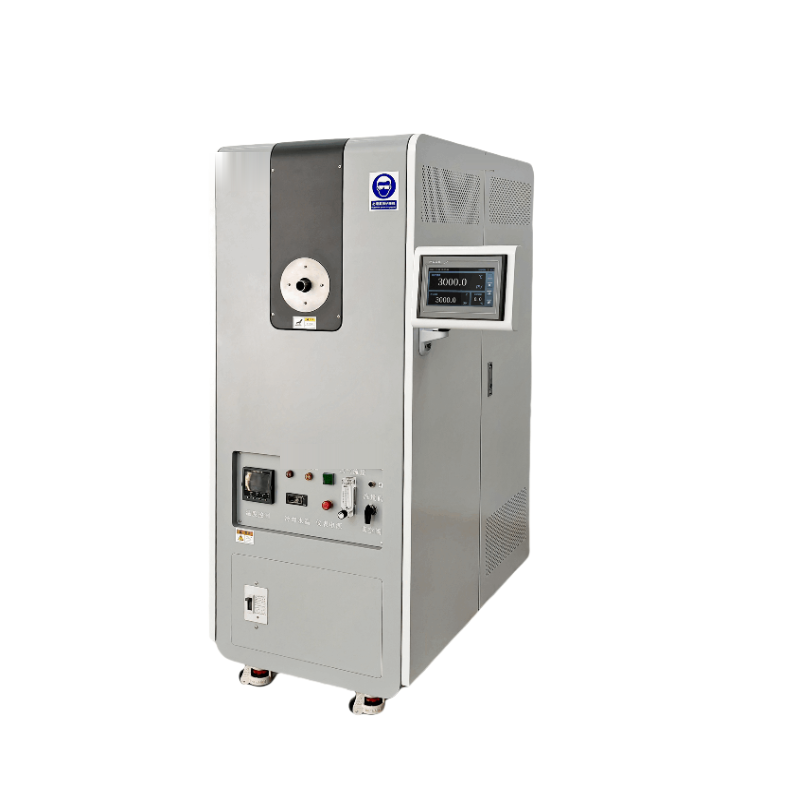

Ultra-high temperature blackbody radiation source

Product Introduction

Definition of black body: an object that can absorb all external radiation energy and radiate all its own energy at the same time.

The main technical indicators of black body: emissivity of black body, diameter of black body cavity, temperature uniformity and uncertainty of radiation temperature. Therefore, in order to ensure the product quality of black body, black body is usually designed according to temperature segmentation. Usually what we call black body is artificial black body. The emissivity of artificial black body is close to 1, but not equal to 1.

The main function of black body is to generate standard radiation at a certain temperature. Therefore, it is mainly used to calibrate various radiation thermometers in temperature measurement, such as optical pyrometers, infrared thermometers, infrared thermal imagers, etc.

Product Feature

• ²
• Accuracy: 0.25% ± 1 °C of reading.
• ²
• Optional remote set point control via RS 232/RS485.
• ²
• Rigorous manufacturing and testing to meet strict safety and quality standards.
• ²
• Traceability certificate of national measurement units can be provided according to user needs.
• ²
• Automatic temperature control method is adopted, which is safe and reliable, with fast heating speed and good temperature stability.
• ²
• Stability: Accurately adjust the stable temperature value required to set the black body at high temperature.
• ²
• Convenient: 1. It can be operated and moved by one person, equipped with industrial universal wheels.
• Simple power supply requirements and energy saving.
• ²
• Safety: There is a protective alarm device on the equipment to ensure the safety of personnel operation.
• ²
• Compact: Lightweight and compact, effectively saving installation space.

Technical Indicators

Product model

Temperature range

800℃ to 3000℃

Temperature resolution

0.1℃

Temperature stability

±1℃

Accuracy

±0.25% of measured value±1°C

Opening diameter

26mm

Emissivity

0.995

Cooling

Water cooling

Heat-up time

5 minutes (ambient temperature to 2350℃)

Control mode

Digital PID control

Heating element

Graphite tube with argon purge

Communication interface

RS232 serial port (RS485 serial port optional)

Working environment temperature

0℃-50℃

Working humidity

0%-90%, non-condensing

Power requirement

220VAC (optional 380V AC) 50Hz, 24KW

Detection port design

The open design is adopted, and there is no need to consider the measurement error introduced by the window. At the same time, it avoids the pollution of the traditional high-temperature blackbody furnace with a window during use, resulting in excessive brightness temperature difference.
