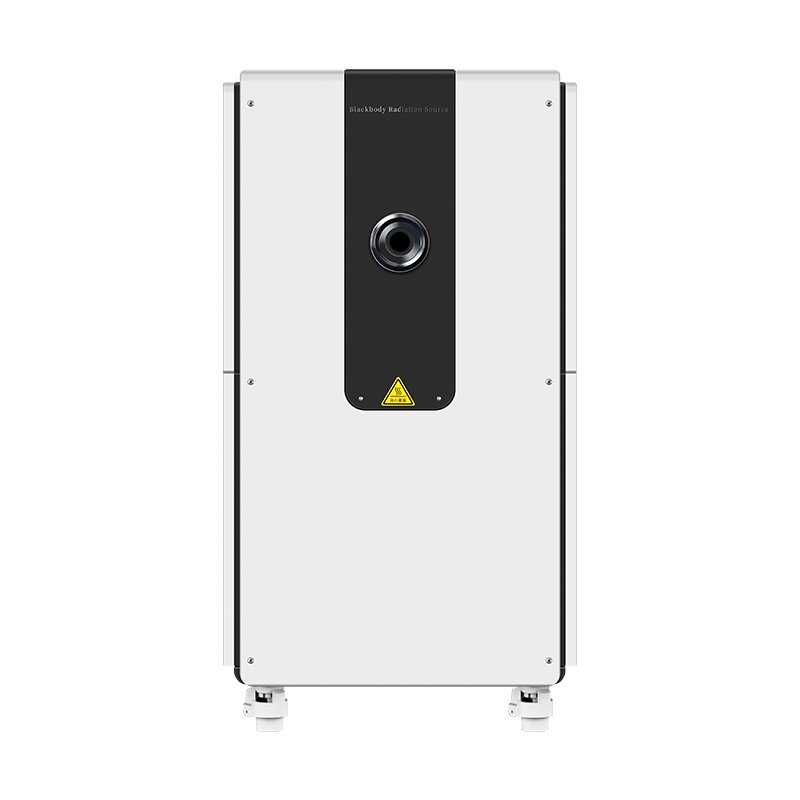

Blackbody Furnace(800℃-1600℃)

Product Introductiondry

Black body in the industry is mainly used in the field of temperature measurement, the main product is black body furnace.

In the calibration and verification of radiation thermometers, the comparative method is usually adopted, that is, through the radiation source of high stability (usually black body radiation source) and other supporting equipment, the temperature reproduced by the standard apparatus and the temperature reproduced by the radiation thermometer are compared, in order to judge whether it is qualified or to give the calibration results.

As a standard radiation source, the standard black body is mainly used to calibrate radiation thermometers, infrared thermometers and radiation temperature sensing detectors.

At present, our company has advanced black body technology, full product range and wide temperature range of black body series products.

Product Feature

• Novel appearance design, integrated structure of furnace body and temperature control instrument.
• Isothermal black body cavity, with only one cavity mouth, cavity mouth radiation evenly distributed along with the spectrum, cavity mouth emissivity above 0.995, resolution up to 0.1℃.
• Heat insulation between the heating body and the shell, special software is used for pressure limiting heating, no high-power power transformer is required.
• Automatic temperature control is adopted, which is safe and reliable with fast temperature rise and good temperature stability.

Technical Indicators

Model

Temperature Range

800℃-1600℃

Control Mode

Touch Screen

Temperature Resolution

0.1℃

Temperature Control

PID Automatic Control

Cavity Diameter

Φ40mm

Cavity depth

470mm

Emissivity

≥0.995

Temperature Stability

Larger than 0.1℃ and 0.1% T (T is the radiation source temperature)

Temperature Uniformity

Larger than ±0.15℃ and 0.15% T (T is the radiation source temperature)

Power Supply

35A  220V AC 50HZ

Power

<7700W

Wire Line Diameter

≥6 square and equipped with 3P 63A circuit breaker with leakage protection

Working Environment

Temperature 25-35℃ Humidity 25-50%

Dimension(L×W×H)

L895 mm×W650 mm×H1305mm

Weight

120Kg

Note: other special requirements can be customized according to the needs of users
