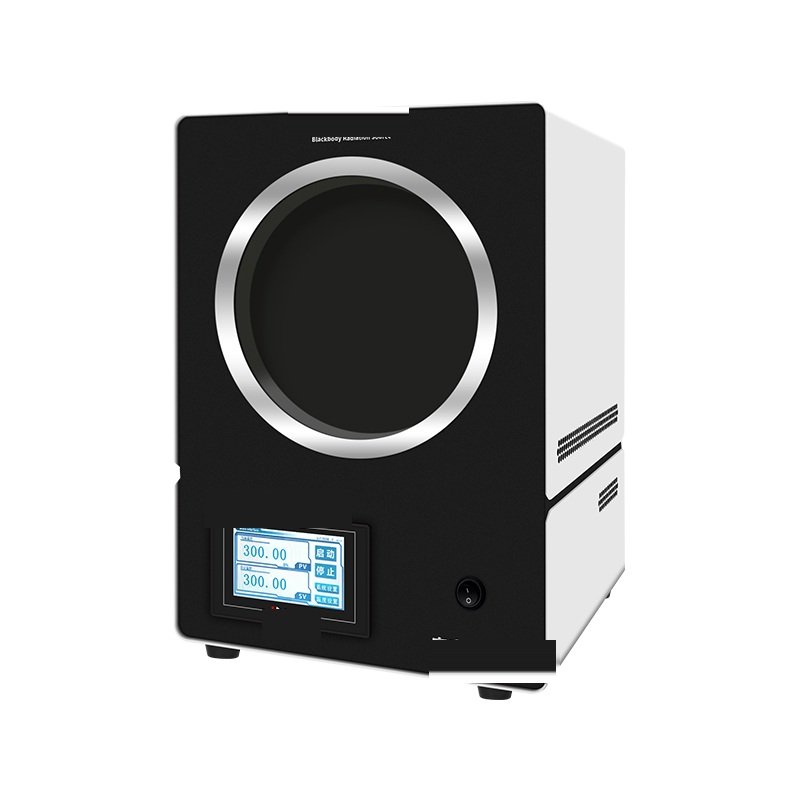

Non-point Source Blackbody Furnace,Radiating Surface 200MM(35℃-100℃)

Product Introductiondry

The  Blackbody Furnace is a standard for infrared radiation. It is widely used in the technical index test of the process test and the qualification test during the development of the infrared detector. It can complete the response uniformity, response curve and death of the photosensitive surface of the infrared focal plane device. In the test of parameters such as element pixels. At the same time, the area source blackbody radiation source is the core equipment of the infrared imaging prism collimation device, and it cooperates with the infrared collimation optical system and infrared target to complete the key technical index test and performance evaluation of the infrared imaging system. It can meet the testing requirements of infrared imagers in my country's newly developed infrared imaging guided weapons, and can meet the testing requirements of infrared thermal imaging cameras that are widely used in medical, construction, security monitoring, environmental testing and other industries.

Technical Indicators

Model:

Temperature Range: 35℃~100℃

Control Mode: Touch Screen

Temperature Resolution: 0.1℃

Temperature Control: PID Automatic Control

Radiating Surface: Φ200mm

Emissivity: ≥0.95

Temperature Stability: Larger than 0.15℃ and 0.15% T (T is the radiation source temperature)

Temperature Uniformity: Larger than ±0.2℃ and 0.2% T (T is the radiation source temperature)(In 2/3 of the central area)

Power Supply: 220VAC 10A

Wire Line Diameter: ≥1.5㎡

Power: 800W

Dimension(L×W×H): 315mm×200mm×340mm

Weight: 15Kg

Optional: optional RS485 communication interface
