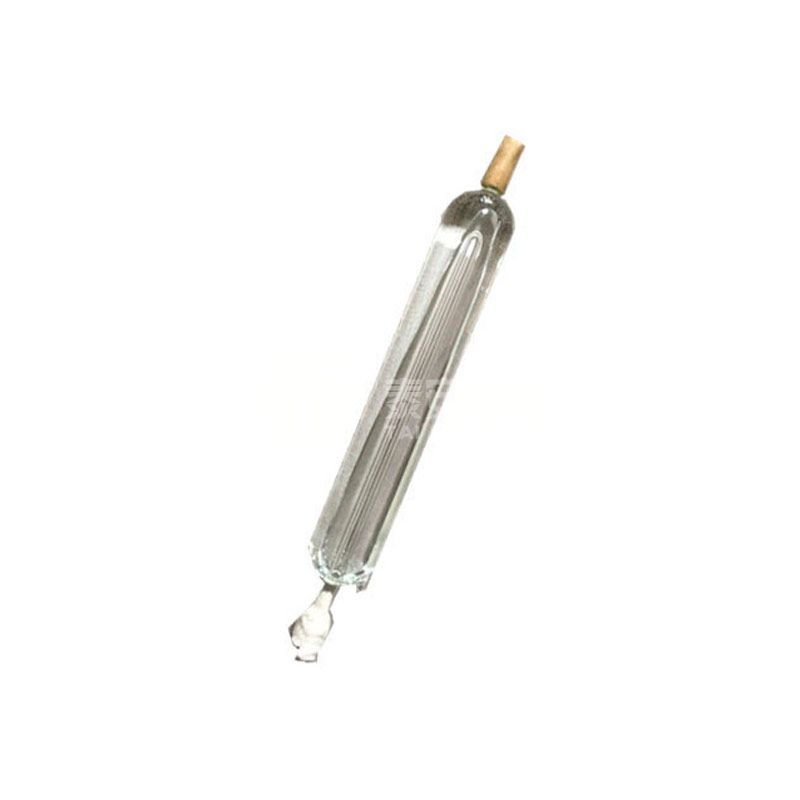

Triple Point Water Bottle
The Triple Point of Water (TPW) is a temperature fixed point defined by both the thermodynamic temperature scale and the International Temperature Scale. The un
- Enquiry-based quotation
- Technical & calibration support
- Worldwide enquiries welcome
Description
Product Introduction
The Triple Point of Water (TPW) is a temperature fixed point defined by both the thermodynamic temperature scale and the International Temperature Scale. The unit of thermodynamic temperature, Kelvin, is defined as the thermodynamic temperature of the triple point of water 1/273.16. It is also a defined fixed point for the International Temperature Scale of 1990 (ITS-90). Therefore the triple point of water temperature is an important, accurate, and easy-to-use temperature standard. The triple point of water cell achieves 0.01°C temperature with an expanded uncertainty of less than 0.0001°C.
Technical Indicators
Dimensions (mm)
57*380/60*450
When inner hole diameter
Φ 12 mm
Reproducibility
≤ 1MK
Immersion depth
265mm
Packaging material
boron-silicon glass or quartz
Water source
it is the Marine water which has been carefully distilled many times
Specifications
| Dimensions (mm) | 57*380/60*450 |
|---|---|
| When inner hole diameter | Φ 12 mm |
| Reproducibility | ≤ 1MK |
| Immersion depth | 265mm |
| Packaging material | boron-silicon glass or quartz |
| Water source | it is the Marine water which has been carefully distilled many times |
