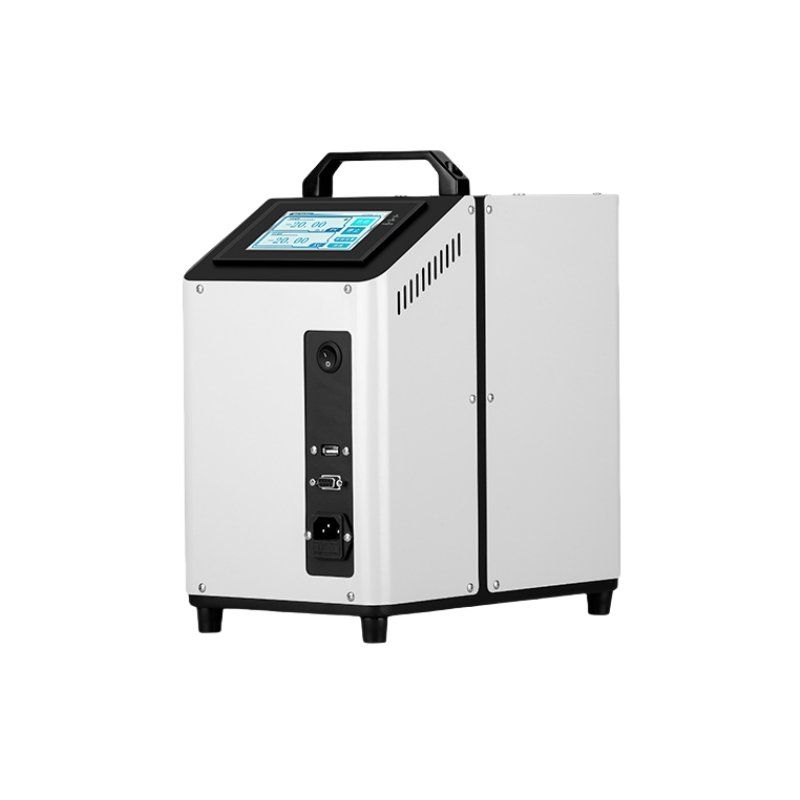

Transformer Oil Level Thermometer Detection Device(-10℃-120℃)

Product Introduction

The transformer thermometer on-site testing device can provide a stable, uniform and accurate temperature environment (temperature field), providing similar to the performance of constant temperature tank (bath tank), but the transformer thermometer on-site testing device is easy to carry, do not need to place liquid.

The field testing device of transformer thermometer reaches the predetermined temperature point and the time of temperature stability is 5 to 10 times faster than that of constant temperature tank, which can greatly save the time of calibrators and improve the speed of temperature verification.

The portability of the transformer thermometer on-site testing device enables it to be calibrated on site conveniently and quickly.

Product Feature

• Humanized design, 4.3-inch touch screen operation, convenient and quick
• 2, the use of advanced modular structure, easy maintenance;
• Test port with standard thread, compact and fixed;
• Heating and cooling direct operation, heating and cooling quickly;

Technical Indicators

Temperature control range

(-10~+120) ℃

Resolution

0.1℃

Stability

±0.2℃

Accuracy

±0.5℃

Control mode

touch screen

Check hole depth

150mm

Soaking block diameter

15mm

Power supply

220V AC 50Hz

Power consumption

≤500W

Heating speed

≥5℃ per minute

Cooling speed

≥1℃ per minute
