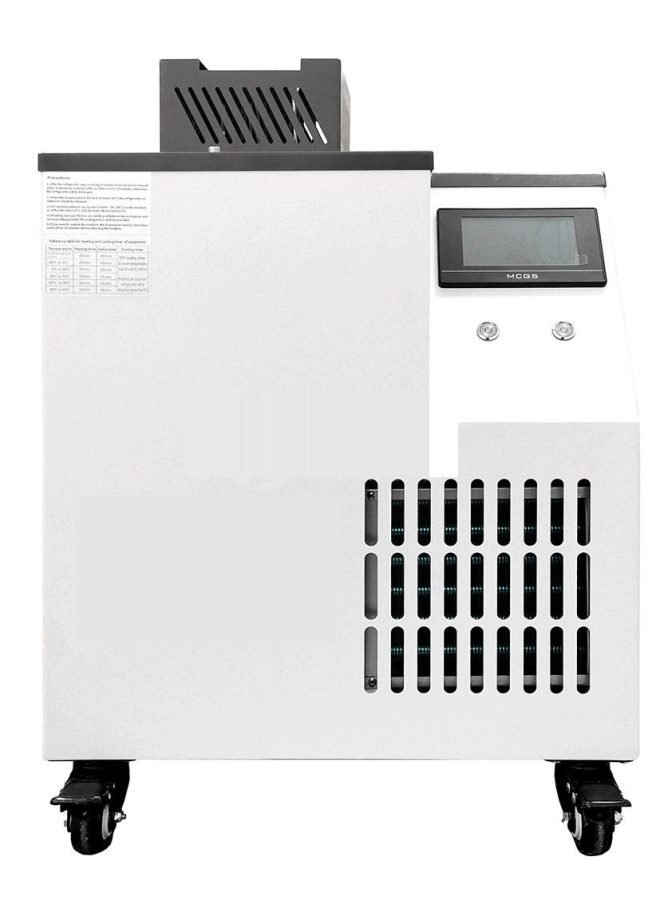

Portable Refrigeration Thermostat(-30℃-105℃)
Portable constant temperature tank is a high precision automatic temperature verification equipment, high temperature control precision, easy to operate. Small
- Enquiry-based quotation
- Technical & calibration support
- Worldwide enquiries welcome
Description
Product Introduction
Portable constant temperature tank is a high precision automatic temperature verification equipment, high temperature control precision, easy to operate. Small size, light weight, easy to carry.
Product use
For metering department as a second – class standard mercury thermometer, Beckmann thermometer. Industrial platinum thermal resistor, standard copper – constantan thermocouple test, also can be used as high precision hot and cold source for production, scientific research.
Technical Indicators
Product Name
Portable Refrigeration Thermostat
Model
Range of Working Temperature
-30℃~105℃
Temperature Fluctuations
±0.01℃/10min
Temperature Uniformity
Horizontal temperature field ≤0.01℃Vertical temperature field ≤0.02℃
Working Area
Ф100×300(mm)
Volume
6.5 L
Working Medium
At low temperature
Absolute ethanol; at high temperature (above 30℃)
soft water
Ambient Temperature
Lower than 30℃
Total Power
800w
Power Supply
220 v/50hz
Dimensions(High working surface)
310×420×500(mm)
Weight
27kg
Specifications
| Product Name | Portable Refrigeration Thermostat |
|---|---|
| Model | |
| Range of Working Temperature | 30℃~105℃ |
| Temperature Fluctuations | ±0.01℃/10min |
| Temperature Uniformity | Horizontal temperature field ≤0.01℃Vertical temperature field ≤0.02℃ |
| Working Area | Ф100×300(mm) |
| Volume | 6.5 L |
| Working Medium | At low temperature |
| Absolute ethanol; at high temperature (above 30℃) | soft water |
| Ambient Temperature | Lower than 30℃ |
| Total Power | 800w |
| Power Supply | 220 v/50hz |
| Dimensions(High working surface) | 310×420×500(mm) |
| Weight | 27kg |
