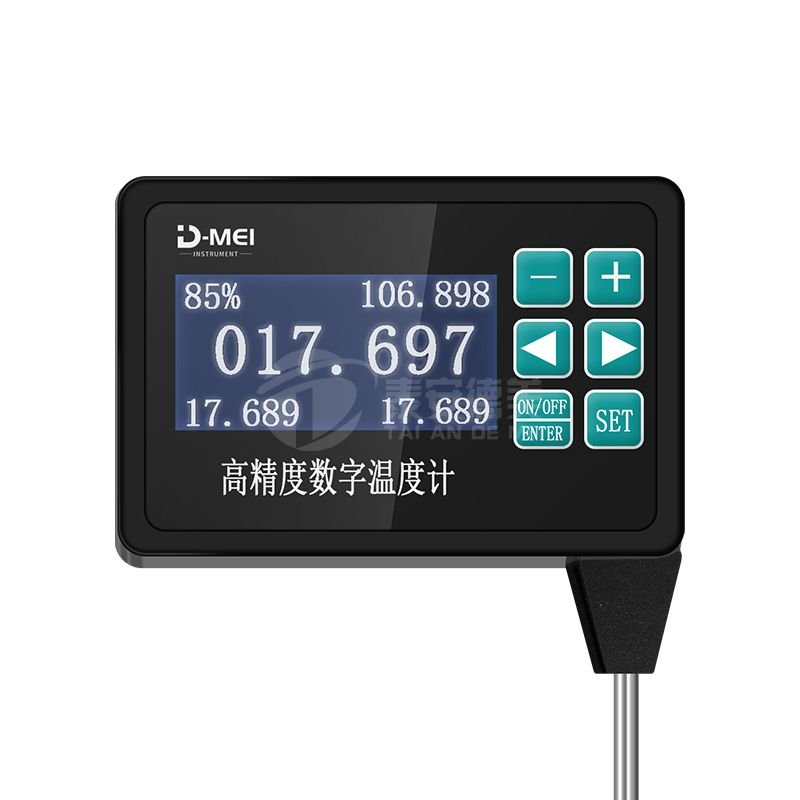

Portable High Precision Digital Thermometer

Product Introduction

High-precision digital thermometer is a new choice in the field of industrial temperature calibration and measurement. It has high precision and can reach an accuracy of ±0.05. It is convenient and fast. It can not only be used as a temperature standard in the laboratory, but also provide reliable, accurate and high-precision temperature measurement in the industrial field. The equipment can be used with a temperature and humidity calibration box to meet the "JJF1076-2020 Digital Thermometer Calibration Specification"

Product Feature

• The product is small in size, light in weight and easy to carry.
• The temperature range is wide, and different types of sensors can be customized according to your own requirements (thermal resistors: PT100, PT1000; thermocouples: K, N, J, T, S, B).
• High resolution 0.001℃. High precision, meeting the "JJF1076-2020 Digital Thermometer Calibration Specification", with an accuracy better than ±0.05℃
• The sensor adopts a rotating shaft design, and the sensor probe can be rotated horizontally or vertically 90°, which is suitable for complex industrial environments.
• Contains host computer software, which can realize multi-point temperature correction. Users can customize segmented corrections for sensors, or use factory default values.
• Micro power consumption, screen sleep and screen brightness adjustment can be realized.
• The main interface displays the current temperature, power, and resistance value in real time, and the 3-minute and 10-minute temperature fluctuations are automatically tracked and calculated.

Technical Parameters

Model

Resolution

0.001℃

Temperature Range

-20℃~150℃

-80℃~300℃

Sensor Type

Standard Configuration: High Precision Platnium Resistance Thermometer Sensor(Customizable)

Accuracy

±0.05℃

0.06℃+0.02%

t

Dimension

100mm*65mm*32mm

Battery Running Time

Standby >70 hours

Power

5000mA/ 4.2V/ Type-c

Probe Rotation

90℃

Weight

270g

Probe Length

460mm(customizable)

Probe Diameter

5mm

Probe Material

Stain Steel 316L

Measuring Medium

Non-conductive gases, liquids, vapors

Functions

Real-time display of current temperature, power display, resistance value, and 3-minute temperature fluctuations

Temperature, 10-minute temperature fluctuation automatic tracking calculation and test function

Working Condition

25℃±10℃,<80%RH
