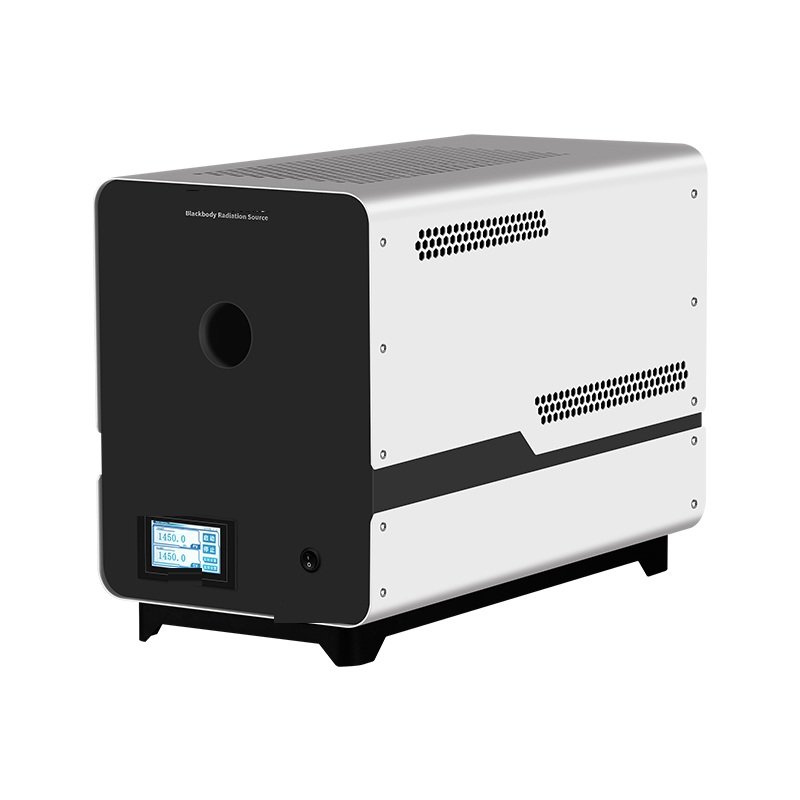

High Temperature Blackbody Radiation Source(800℃-1400℃)

Product Introductiondry

As a standard radiation source, standard black bodies are mainly used to calibrate radiation thermometers, infrared thermometers and radiation temperature sensor detectors. Our company currently has advanced black body technology, a full range of black body products with a wide temperature range. The products are small in size, light in weight and easy to carry. They are not only suitable for calibrating radiation thermometers in laboratories of metrology institutions at all levels, but can also be used for on-site calibration.

Product Feature

• More portable and lighter.Higher accuracy.
• Human-machine interface, touch operation.
• One-key temperature setting, easy to operate.Rapid heating, temperature control.
• Can copy the language interface of any place in the world according to customers' requirements for export convenience.

Technical Indicators

Model

Temperature Range

800℃-1400℃

Control Mode

Touch Screen

Temperature Resolution

0.1℃

Temperature Control

PID Automatic Control

Cavity Diameter

Φ40mm(Customizable)

Emissivity

≥0.995

Temperature Stability

Larger than 0.1℃ and 0.1% T (T is the radiation source temperature)

Temperature Uniformity

Larger than ±0.15℃ and 0.15% T (T is the radiation source temperature)

Power Supply

220V  AC  50HZ

Power

3100W

Dimension(L×W×H)

630mm×370mm×520mm

Weight

30.0Kg

Note: other special requirements can be customized according to the needs of users
