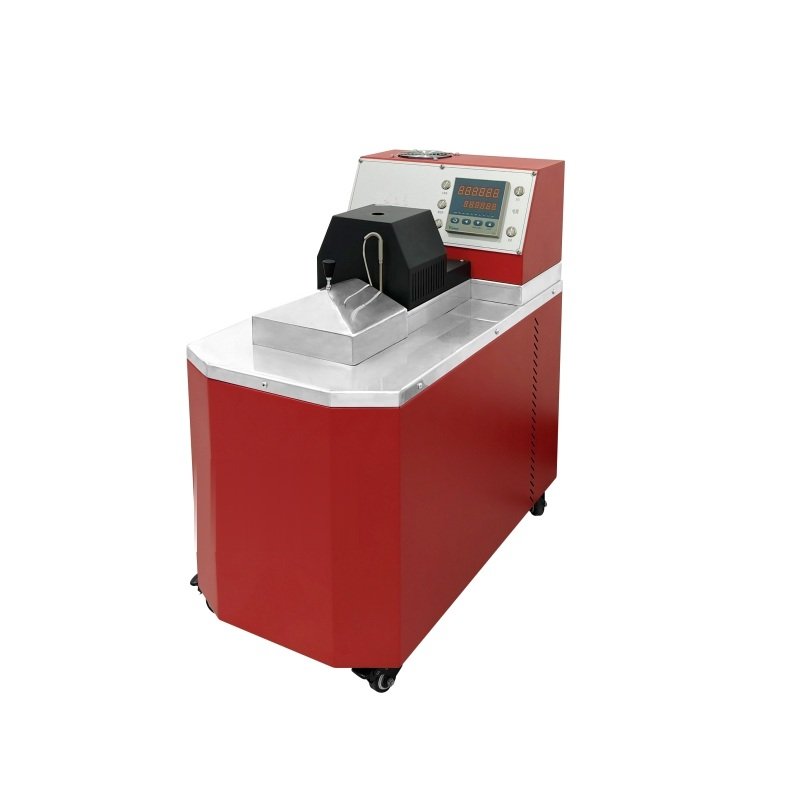

high-precision constant temperature salt bath (160℃~550(600℃))

Product Introduction

High-precision constant temperature salt bath is a high-precision temperature calibration device, which has the characteristics of good temperature stability, uniform temperature field, high temperature control accuracy, etc. The digital temperature controller realizes automatic temperature control according to the PID regulation law, with compact structure, convenient operation and intuitive bath temperature reading. It is suitable for various measurement, biochemistry, petroleum, meteorology, energy, environmental protection, medicine and other departments and manufacturers of thermometers and temperature controllers to detect physical parameters, and can provide a constant temperature source for other experimental research work.

Product Structure

The product adopts an advanced automatic control system with a friendly interface, easy operation and high control accuracy. It is mainly composed of a heating system, a temperature control system and a stirring system. The tank body is divided into a mixing area and a working area. In the mixing area, the heat generated by the heater heats up the solid salt (medium) in the tank and melts it into a salt solution. When the temperature of the salt solution rises to a temperature close to the set temperature, the temperature control system controls the heater to work according to the temperature measured by the temperature sensor. After the strong stirring of the stirring system, the salt solution (medium) is fully uniformed and sent to the working area with less external interference. Thus, a liquid space with stable temperature and uniform temperature field is obtained.

After the calibration work is completed, the salt solution begins to cool until it solidifies into a whole solid salt. When the next calibration is performed, the solid salt melts again until it is completely liquid.

Technical Indicators

Product Name

High precision constant temperature salt bath

Model

Range of Working Temperature(℃)

160℃~550(600℃)

Temperature Fluctuations(℃/10min)

±0.015℃ (±0.02 above 500℃)/10min

Temperature Uniformity(℃)

Horizontal temperature field 0.03℃

Heating rate

Room temperature rises to 550℃<2 hours

Working medium

Formula 2 salt

Volume(L)

6L

Communication interface

R485 communication interface (customization required)

Environmental requirements

Ambient temperature: 15℃~30℃, relative humidity: no more than 80%RH;

No strong vibration, electromagnetic radiation, electromagnetic shielding, no dust and corrosive substances around

Total Power(kw)

3.0kW

Power Supply(v/50hz)

220±10% VAC, 50±1Hz

Independent power supply, a separate air switch should be installed, good grounding

Effective depth (mm)

250mm

Overall dimensions L×W×H (mm)

660mm×350mm×450

Working area size

100 (mm) Depth 280 (mm)

Outer shell material of the inner bladder

Stainless steel hairline plate
