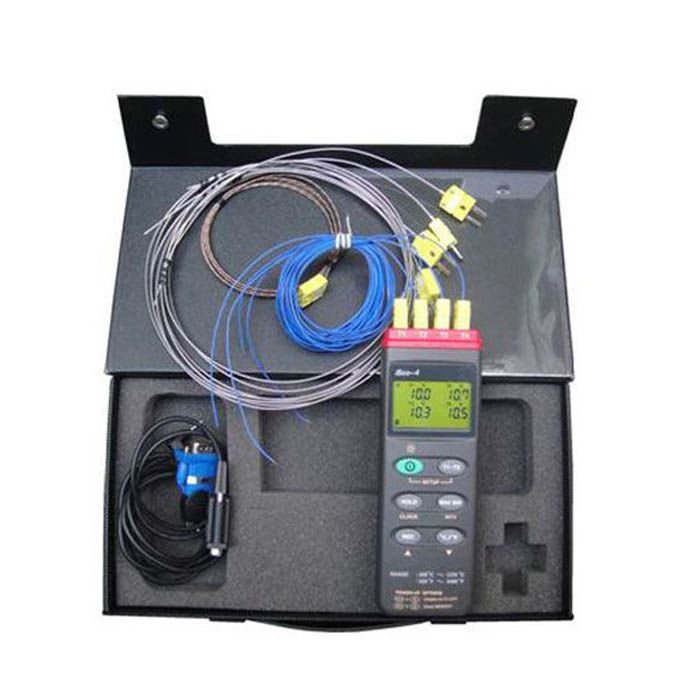

Furnace Temperature Tracker

Product Introduction

The furnace temperature tracker's superior insulation performance enables the test system to perform temperature mapping in harsh thermal environments.

Through the heat treatment furnace together with the products, the temperature of the heat treatment furnace and products can be monitored throughout the process, and valuable data can be obtained without couple test. The curve analysis report formed can provide the real temperature state of the products and furnaces to the engineers immediately, which will tell you how to optimize the operation.

By balancing temperature, time and heating rate, you can improve line speed and product quality to achieve efficient production.

DY – LW furnace temperature tracker is a high precision, high stability test records of furnace temperature products, filled the domestic blank in the field of temperature acquisition, the system also equipped with a powerful software analysis system, the collected temperature data save, PC software analysis system function parameters such as temperature and length, time, product features, analysis of synchronous processing.

Scope

Coating of the lacquer that bake furnace temperature tester, temperature tracker, non-stick coating for steel heat treatment furnace temperature tracker, wheel hub heat treatment furnace temperature tracker, SMT temperature tester, brazing furnace temperature tracker, car coating temperature tracker, food baking furnace temperature tracker, ceramic firing furnace temperature tracker, enamel furnace temperature tracker, carburizing furnace, heat treatment, the spring heat treatment, bearing heat treatment, etc.

Technical Indicators

Model

Original

China

Insulation box origin

ShanDong

Number of channels

4-16 Channel

Sensor

Type K Thermocouple

Precision

+-0.5

Hours of use

-100~1300℃ range, 1~15 hours customized

Resolution

0.1

Internal Storage

Each channel can record and store 16,000 data

Sample rate

1S, 2S, 3S, 4S, 5S, 6S, 10S, 20S, 30S, 1min and so on can be selected by the user.

System Requirements

Windows 98, 2000, XP, etc., can print the temperature curve through the computer.

MR Configurator

Continuous testing, data download once USB port, suitable for all computers

Standard voltage calibration, reliable accuracy

All kinds of indicator lights, clear instrument status

When data is downloaded, the device charges itself

Analysis Software

Each curve can be optionally displayed or not the heating rate between any two temperatures can be calculated.

You can calculate the time above certain four temperatures;

You can calculate the peak temperature;

You can compare data from 2-5 tests.

Insulation box size

Customize according to the actual situation

Standard Configuration

Temperature recorder, temperature probe, communication line, data processing and analysis software, incubator, operation manual

Accessories

NO.

Name

Qty

NO.

Name

Qty

1

Instrument packing case

1PCS

7

Waterproof strip 2 meters

1PCS

2

Thermometer  machine

1PCS

8

high temperature tape

1PCS

3

Insulated Box

1PCS

9

Software USB flash disk

1PCS

4

Operating Manual

1PCS

5

Data cable and charger

1PCS

6

Thermocouple Plug

12PCS

Technical indicators

Model

 –TM104K-TM16K

Power Consumption

≤35mA

Test Channel

CH10

Power

Li-ion 850mA

Sampling Rate

10s

Dimension of thermometer

138mm*61mm*20mm

Measurement Accuracy

±1℃

Insulation Box Size

48 x 37x 32cm

Resolution

0.1℃

Working Voltage

DC3.7V~DC4.2V

Core Temperature

≤85℃

Continuous Test

Store up to 4 times at a time

Starting Mode

Button start, delay start, temperature start

Memory Capacity

8M 246,000 data point
