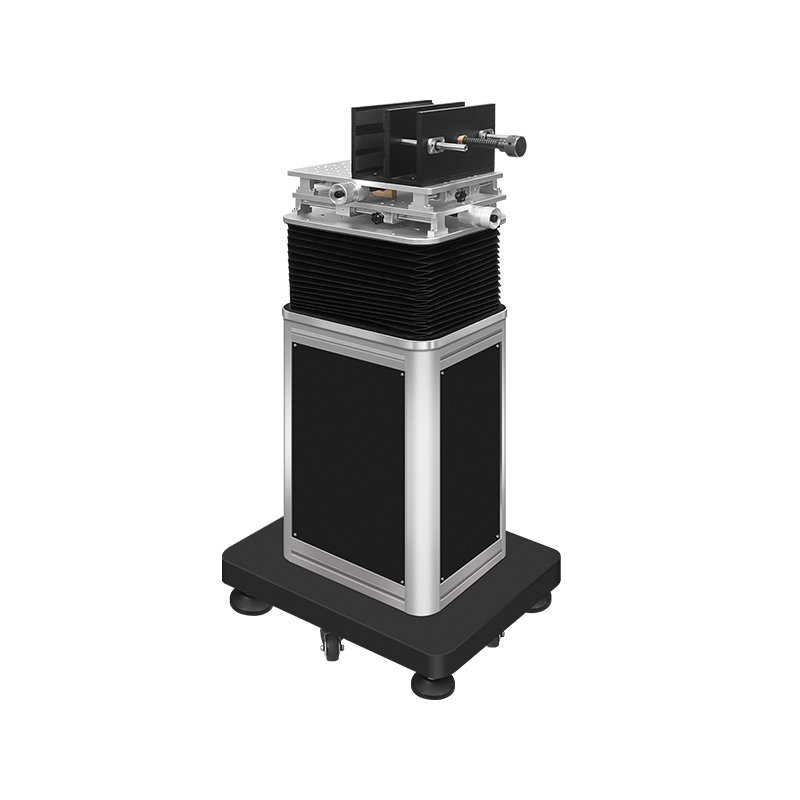

Fully Automatic Special Infrared Aiming Device for Blackbody Furnace/Mobile Work Table for Infrared Radiation Thermometer

Description

Fully automatic operation structure, convenient and fast
Provides a mobile lifting platform, providing fine adjustment in horizontal and height directions
Provides positioning for the detection of radiation equipment such as infrared thermometers
Adopts precision-ground screw drive and five-axis positioning mechanism to ensure smooth, comfortable, high-precision and large-load movement
Multi-hole design, strong applicability, can be used as an installation surface
Flexible movement, sturdy and durable, equipped with a locking handwheel, safe and reliable
The table has connection holes with standard hole spacing, which is convenient for combination with various infrared instrumentation products

1. Overall dimensions (length, width and height): 460*260*1280mm (upper limit)

2. Workbench panel: 380*240mm

3. Workbench left and right travel: 260mm

4. Upper limit height: 1280mm, lower limit height: 800mm

5. Mounting hole: M6

6. Hole spacing: 25mm
