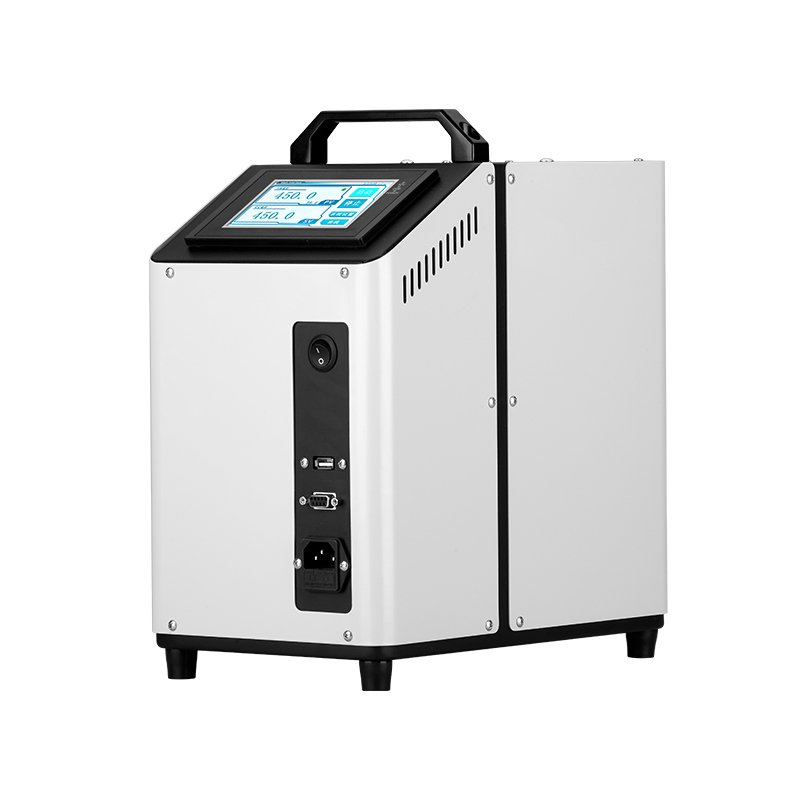

Fast Heating and Cooling Dry Block Temperature Calibrator(50℃-600℃)
quick rise, dry cooling furnace body (50℃ to 600℃) is based on the intelligent dry body furnace technology on my company provide rapid rise cool dry furnace bod
- Enquiry-based quotation
- Technical & calibration support
- Worldwide enquiries welcome
Description
Product Introduction
quick rise, dry cooling furnace body (50℃ to 600℃) is based on the intelligent dry body furnace technology on my company provide rapid rise cool dry furnace body, rapid rise cool dry furnace body in time to reach the predetermined temperature and temperature stability than ordinary dry body furnace on the market for five to 10 times faster, so can greatly save calibration staff time, raise the temperature detection speed, improve the labor.
The portability of the fast lifting and cooling dry body furnace enables it to carry out calibration in the field, thus solving the problems such as difficult movement of the constant temperature tank in transportation and slow heating and cooling.
In terms of technology, it is in step with the advanced technology at home and abroad, and in terms of horizontal temperature field, vertical temperature field, rapid rise and drop, etc.
Product use
Rapid lifting and cooling dry body furnace is used in the required temperature range, widely used in pharmaceutical, machinery, shipping, chemical, biological products, power plant substation, steel works, measurement testing, scientific research and other industries that need on-site temperature calibration.
Temperature sensors, expansion thermometers, thermocouples, thermal resistors and other temperature sensors can be calibrated more conveniently and quickly through the rapid lifting and cooling dry body furnace.
Lifting and cooling characteristics
1. Temperature rise: It only takes 13min for room temperature to 600℃ and 7min for 300℃ to 600℃.
2. Cooling: It only takes 12min to cool the temperature from 600℃ to 300℃.
It only takes 20min to reduce temperature from 300℃ to 100℃.
Test method and reference code: JJF1257-2010 dry body furnace calibration method.
Technical Indicators
Temperature range
50℃-600℃
Display resolution
0.1℃
Control mode
touch screen
Stability
±0.1℃
Accuracy
±0.5℃
Temperature rise time
15min (temperature rise from room temperature to upper limit + stable time)
Cooling time
28min (the upper limit temperature drops to 100℃)
Check hole depth
155mm
Default display
Chinese display full color LCD℃or℉
Diameter of soaking block
34mm
Calibration hole diameter
Standard: 4mm, 6mm, 8mm, 10mm, 12min (customizable)
Dimensions (length X width X height)
320mmX160mmX280mm
Weight
8.0 KG
Power supply
220 vac50hz900w
Adjustment mode
Automatically adjust the power and temperature difference
Language
English (Customizable)
Specifications
| Temperature range | 50℃-600℃ |
|---|---|
| Display resolution | 0.1℃ |
| Control mode | touch screen |
| Stability | ±0.1℃ |
| Accuracy | ±0.5℃ |
| Temperature rise time | 15min (temperature rise from room temperature to upper limit + stable time) |
| Cooling time | 28min (the upper limit temperature drops to 100℃) |
| Check hole depth | 155mm |
| Default display | Chinese display full color LCD℃or℉ |
| Diameter of soaking block | 34mm |
| Calibration hole diameter | Standard: 4mm, 6mm, 8mm, 10mm, 12min (customizable) |
| Dimensions (length X width X height) | 320mmX160mmX280mm |
| Weight | 8.0 KG |
| Power supply | 220 vac50hz900w |
| Adjustment mode | Automatically adjust the power and temperature difference |
| Language | English (Customizable) |
