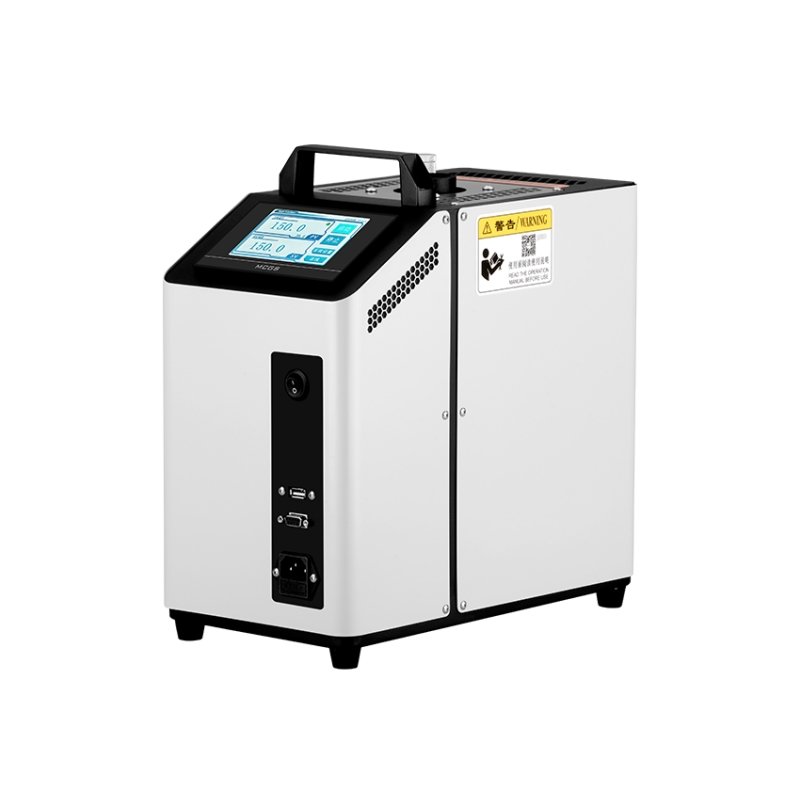

Dry Block Temperature Calibrator(-20℃~150℃)

Product Introduction

Portable Thermal Metrology Measurement Dry Block Temperature Bath Calibrator Well Calibration Furnace

Thermocouple Calibrator is a kind of convenient to carry, rise and drop the speed is fast, very traditional field heat source (temperature field), dry body furnace adopts high stability temperature control instrument, the test temperature range: -20℃~150℃, the homogenizer adopts the alloy material with good heat conduction.

In terms of technology, it is synchronized with the advanced technology at home and abroad, and in terms of insertion depth, horizontal temperature field, vertical temperature field and other technologies, it is in advanced level.

Used in the required temperature range, is widely used in pharmaceutical (GMP humid heat sterilization, dry heat sterilization), machinery, shipbuilding, chemical, biological products, power plant substation, steel works, measurement testing, scientific research and other industries need on-site calibration temperature.

[Product Functions of Dry Block Temperature Calibrator

]

A dry well furnace provides a stable, uniform, and accurate temperature environment (temperature field), providing performance similar to that of a constant temperature bath (liquid bath), but a

dry bath furnace

is portable and does not require the placement of liquids.

The time for the dry block calibrator to reach the predetermined temperature point and stabilize the temperature is 5 to 10 times faster than that of the constant temperature tank, which can greatly save the calibrator's time and improve the speed of temperature verification.

The portability of the RTD Calibrator enables it to perform calibration in the field, thus solving the transportation difficulties of the constant temperature tank.

Temperature sensors, mercury thermometers, expansion thermometers, thermocouples, thermal resistors, and other temperature sensors can be conveniently calibrated through a dry block calibration bath.

Product Feature

• More portable and lighter.Higher accuracy, resolution 0.1/0.01℃.
• Human-machine interface, Chinese display, touch operation, beautiful and generous.
• One-key temperature setting, easy operation, automatic adjustment of heating power.
• Rapid heating, temperature control.
• The accuracy is adjustable. It can be adjusted with one key according to the precision of different standard sensors.
• Temperature test record, curve display, data can be exported via USB, easy to query work efficiency.
• According to customers' requirements, you can learn the language interface of any place in the world, which is convenient for export.

Technical Indicators

Model

Temperature Range(Indoor Temperature≤22℃)

-20℃~150℃

Display Resolution

0.1℃/ 0.01℃

Control Mode

Touch Screen

Stability

±0.1℃

Accuracy

±0.3℃

Depth of Checking Hole

155mm

Default Display

English Display full color LCD   ℃ or ℉

Diameter of Heat Block

30mm

Diameter of Checking Hole

4mm6mm8mm10mm(Customizable)

Number of Checking Hole

4(Customizable)

Size(Height* Width* Length)

280mm × 160mm × 320mm

Weight

8KG

Power Supply

220V AC 50HZ  450W

Accommodation Mode

Automatically adjust the power and temperature difference

Language

English(Customizable)

Operating Conditions

18℃—25℃  30%RH-80%RH

Standard Accessories

Power line* 1  Specification * 1  Product Manual*1
