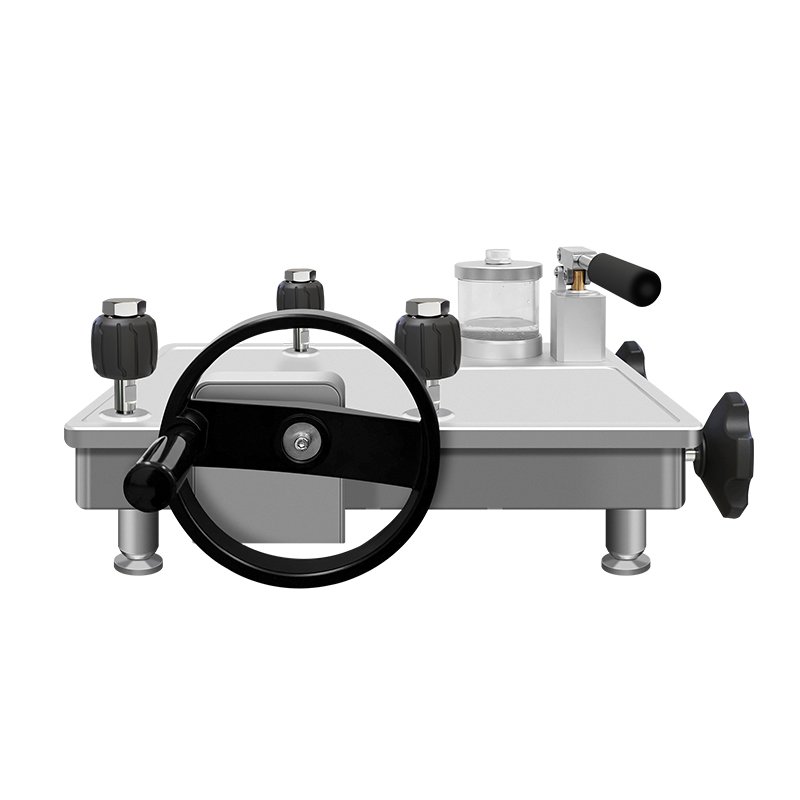

Benchtop Hydraulic Pump (0~250 MPa)

Product Introduction

It features a fully open structure for easier maintenance; the spiral-type pressure rise and fall is smooth, and the pressure stabilizes instantly, with retrace calibration. Easy to operate, it provides stable, fast, safe, and reliable high pressure for calibrating pressure transmitters, pressure sensors, pressure gauges, and other pressure instruments.

Product Features

• ◆ Imported pressure pump, safe and reliable, clog-free
• ◆ Spiral pressure riser/fall, stable pressure increase and decrease, easy return calibration
• ◆ Sealing technology, long service life, leak-free
• ◆ Ultra-fine micro-adjustment, more accurate control over pressure changes
• ◆ Open structure, convenient for cleaning and maintenance

Technical Indicators

Pressure range:(0~70)MPa/(0~100)MPa/(0~160)MPa /(0~250)MPa

Stability: 0.02%F.S

Adjustment Accuracy:0.1kPa

Output interface: M20×1.5(Three standard internal thread interfaces)

Working Medium:Hydraulic Oil

Oil Cup Volume:70ml

Dimensions:430mm×365mm×230mm

Equipment Weight:10kg
